Wood crusher

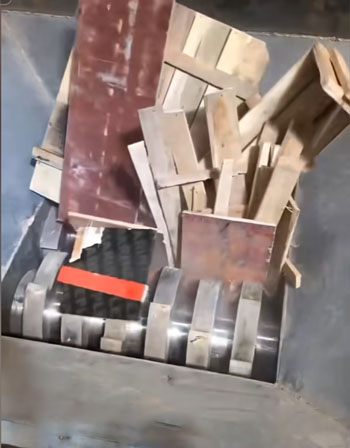

Wood shredder, also known as shear shredder, is specifically for wood crushing, through cutting, tearing and extrusion to reduce the size of the material. Mainly used in wood, furniture factory scraps, waste furniture, wooden pallets, building templates, logs, branches, roots, roots and other kinds of wood crushing and recycling.

Production capacity: 400-60000kg/h
Feed size: 500-3000mm
Applicable materials: wood, furniture factory scraps, waste furniture, wooden pallets, building templates, logs, branches, roots,
Application fields: formwork factory, bamboo plywood factory, wood-based board factory, composite board factory, waste wood processing enterprises.

Product Introduction:

Product features:

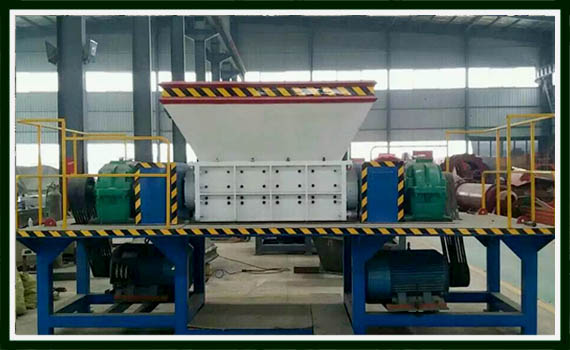

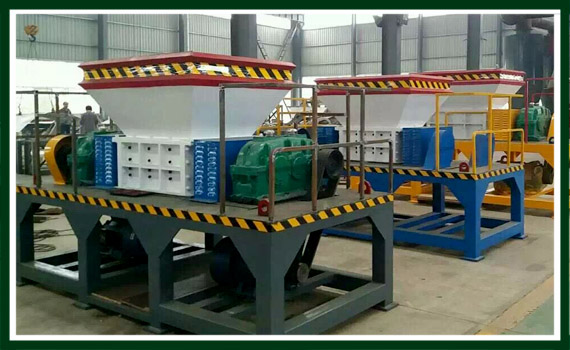

1. The two-axis shredder has low speed, high torque, low noise and other characteristics, using PLC control system, can be automatically controlled, with start, stop, reverse and overload automatic reverse control function.

2. The motor + reducer drives the cutter shaft to achieve the cutting effect of low speed and high torque.

3. Bearing six-fold seal, effective waterproof and dustproof, prolong the service life of the bearing.

4. After the tool is worn, the tool coating and welding repair technology is used to achieve multiple reuse of the tool and greatly reduce the maintenance cost of the tool.

5. Split-type box design, can easily and quickly remove the entire cutter shaft (shaft, blade, bearing, sealing system).

6. The tool is arranged according to the helix to achieve efficient cutting.

7. The inner hole and spindle face of the tool are designed with six sides to achieve the uniformity of the force of the tool.

8. According to the different materials and product shapes to tear, you can choose different types of tools.
